powder coating line
Advanced Powder Coating Services
At Paragon Metal Fabricators, our powder coating line is engineered to deliver consistent, high-quality finishes that enhance the durability and appearance of your products. By integrating this service into our fabrication process, we provide a streamlined solution that meets your project’s specifications and timelines.
-
Enhanced Durability Our powder coating process provides a robust finish that resists scratches, corrosion, and environmental wear, extending the lifespan of your products.
-
Consistent Quality The controlled application ensures uniform coverage, resulting in a smooth and attractive finish on every part.
-
Efficient Turnaround With a total line capacity of 100,000 lbs and the ability to handle parts up to 10' L x 41" W x 72" H, we accommodate both large-scale and small-batch orders promptly.
-
Flexible Color Options Equipped with 16 color hoppers and a direct box feeder system, we offer a wide range of color choices to match your project requirements.
-
Eco-Friendly Process Our powder coating emits fewer volatile organic compounds (VOCs) compared to traditional painting methods, making it a more environmentally responsible choice.
Our Powder Coating Process
We begin by thoroughly cleaning and preparing each part using a 7-stage system that includes an acid bath, enabling effective coating of oxygen-cut parts. This preparation ensures optimal adhesion and finish quality. The parts then proceed through two heated stages—utilizing Laser TERJ SA310 and GF Clean 1052 units—for precise surface readiness. Finally, the GAT wash booth and GEMA paint booth apply the powder coating, and the parts are cured in Midwest Finishing Systems (MFS) ovens to achieve a durable and uniform finish.
SPECS AND CAPABILITIES
Surface Preparation That Improves Product Lifespan
Our 7-stage preparation process, including an acid bath, enables us to powder coat oxygen-cut parts effectively, extending your product’s lifespan by significantly enhancing coating adhesion. This reduces the need for rework and provides long-term protection against corrosion and wear.
Precision Cleaning & Heating for Consistent Results
We employ targeted heat and cleaning processes to ensure optimal coating results:
Heated Stages
Laser TERJ SA310 for precise surface readiness
GF Clean 1052 units for thorough contaminant removal
GAT Wash Booth
Ensures complete surface cleanliness, improving coating adherence and consistency
High-Quality Equipment for Reliable Finishes
Our use of proven equipment directly benefits your projects:

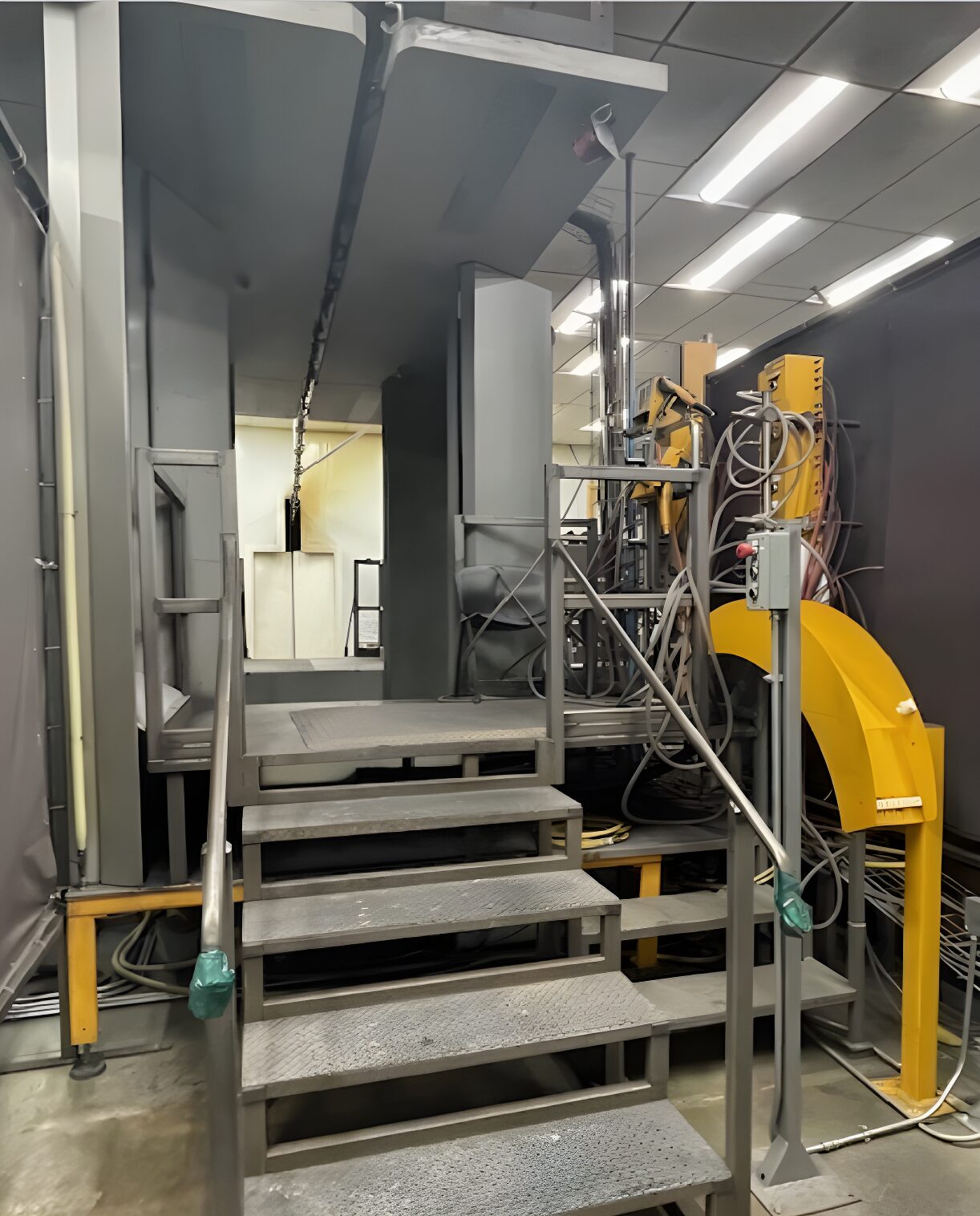

GEMA Paint Booth
Delivers precise application, reducing inconsistencies and rework

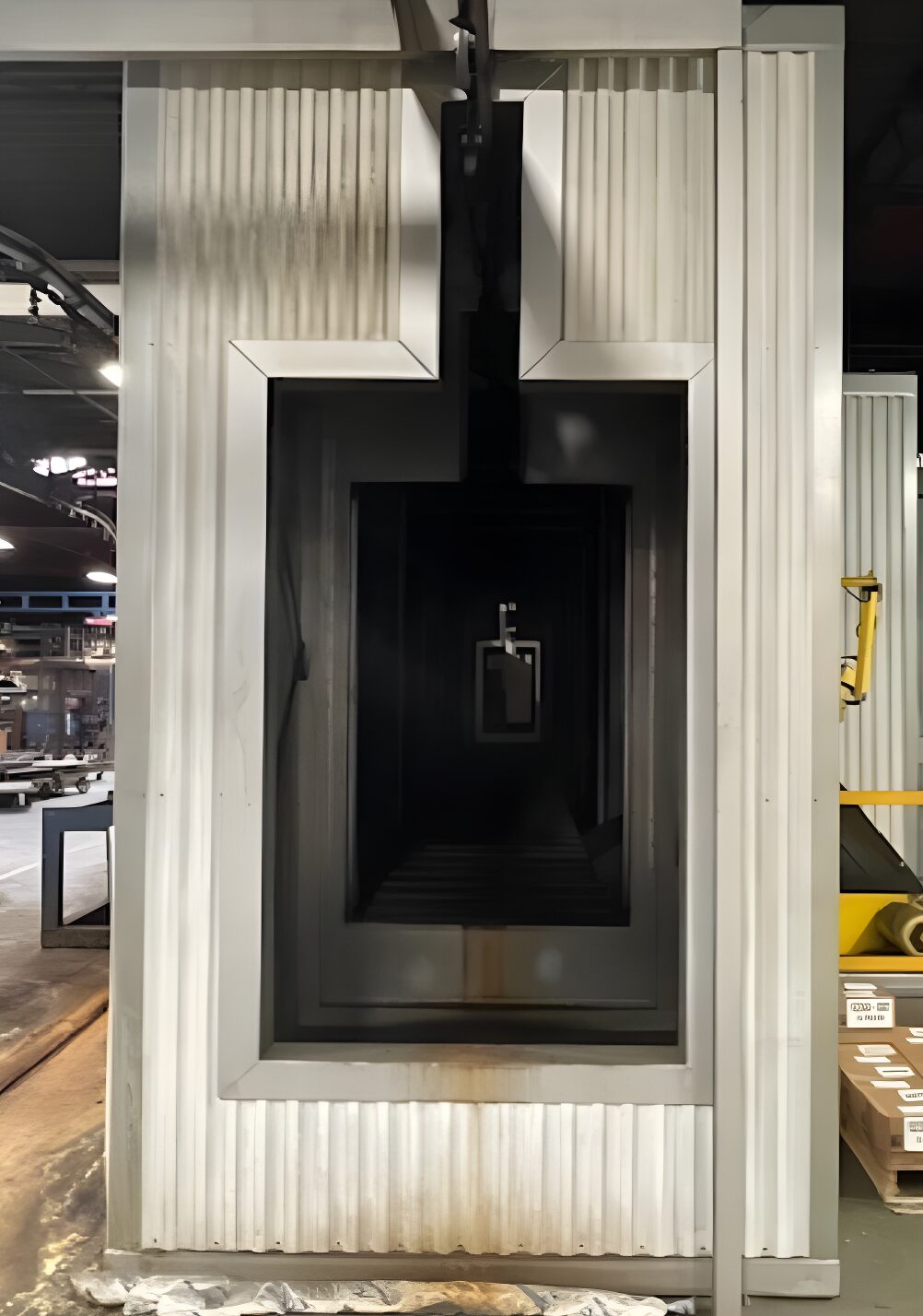

Midwest Finishing Systems (MFS) Ovens
Provide even curing, strengthening the durability and longevity of the powder coat finish
Efficient Color Handling for Faster Delivery
With our 16 color hoppers and direct box feeder system, we reduce downtime between color changes, enabling quicker turnaround times and the flexibility to handle both large-scale and custom batch orders effectively.
- 10' L x 41" W x 72" H
- Hook Load Capacity: 250 lbs
- Line Capacity: 100,000 lbs
- 16 color hoppers with direct box feeder supply
- **Batch Available**
7 Stage System With Acid Bath
Enables powder coating of Oxygen cut parts;
Nitrogen cut only not required.
2 Heated Stages:
(1) Laser TERJ SA310, (4) GF Clean 1052
Manufacturers
GAT Wash Booth
GEMA Paint Booth
Midwest Finishing Systems (MFS) Ovens
Applications of Our Powder Coating Services
Our powder coating process supports a wide range of industries and end uses. In the automotive sector, it enhances both the durability and appearance of vehicle components, helping them stand up to daily wear and exposure. For construction, our corrosion-resistant coatings protect structural elements, extending their service life and reducing maintenance needs. In manufacturing, powder coating is a key step in protecting machinery and equipment parts from harsh environments and repeated use. Even consumer products benefit from our process, with smooth, durable finishes that improve both look and performance over time.
Built to Last. Finished to Perform.
